- Place of Origin: SHANDONG
- Brand Name: TLB

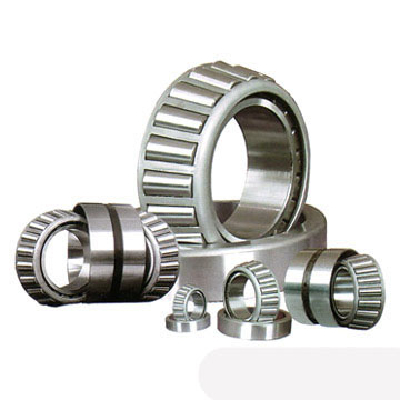

- Model Number: Taper roller Bearing
DIMENSION (mm) | LOADING（KN） | SPEED LIMITTED | BEARING CODE | ||||||||
GREASE | OIL | ||||||||||
d | D | T | B | C | rmin | r1min | Cr | Cor | R/M | R/M | |
15.875 | 42.862 | 14.288 | 14.288 | 9.525 | 1.6 | 1.6 | 17.8 | 17.7 | 1000 | 14000 | 11590/20 |
17.462 | 39.878 | 13.843 | 14.605 | 10.668 | 1.2 | 1.2 | 25.4 | 26 | 11000 | 14000 | 11749/10 |
19.05 | 45.237 | 15.494 | 16.637 | 12.065 | 1.2 | 1.2 | 29.4 | 30.1 | 9400 | 13000 | 11949/10 |
19.05 | 49.225 | 19.845 | 21.539 | 14.288 | 1.2 | 1.2 | 37.7 | 37.7 | 8900 | 12000 | 09067/195 |
19.05 | 49.225 | 21.209 | 19.05 | 17.462 | 1.2 | 1.6 | 37.7 | 37.7 | 8900 | 12000 | 09074/196 |
19.05 | 39.992 | 12.014 | 11.153 | 9.525 | 1 | 1.3 | 14.9 | 15.7 | 9500 | 13000 | 6075/6157 |
19.05 | 49.225 | 21.209 | 19.05 | 17.462 | 1.2 | 1.6 | 37.7 | 37.7 | 8900 | 12000 | 09067/196 |
19.05 | 49.225 | 19.845 | 21.539 | 14.288 | 1.5 | 1.3 | 38.5 | 39 | 8500 | 11000 | 09074/195 |
19.05 | 49.225 | 23.02 | 21.539 | 17.462 | 1.5 | 3.5 | 37.5 | 37 | 8500 | 11000 | 09074/194 |
20.638 | 49.225 | 19.845 | 19.845 | 15.875 | 1.5 | 1.5 | 37.5 | 39 | 8200 | 11000 | 12580/20 |
21.43 | 50.005 | 17.526 | 18.288 | 13.97 | 1.2 | 1.2 | 39.1 | 40.7 | 8500 | 11000 | 12649/10 |
21.987 | 45.237 | 15.494 | 16.637 | 12.065 | 1.2 | 1.2 | 30.1 | 34.6 | 8900 | 12000 | 12749/10 |
21.986 | 45.974 | 15.494 | 16.637 | 12.065 | 1.2 | 1.2 | 30.1 | 34.6 | 8900 | 12000 | 12749/11 |
22.225 | 50.005 | 17.526 | 18.288 | 13.97 | 1.2 | 1.2 | 39.1 | 40.7 | 8500 | 11000 | 12648/10 |
22.225 | 57.15 | 22.225 | 22.225 | 17.462 | 0.8 | 1.6 | 52.6 | 55.7 | 7600 | 10000 | 1280/1220 |
22.225 | 56.896 | 19.368 | 19.837 | 15.875 | 1.2 | 1.2 | 460 | 43.1 | 7600 | 10000 | 1755/1729 |
- Place of Origin: SHANDONG
- Brand Name: TLB
- Model Number: Taper roller Bearing
